Used Dental Delivery Systems | Adec 3175

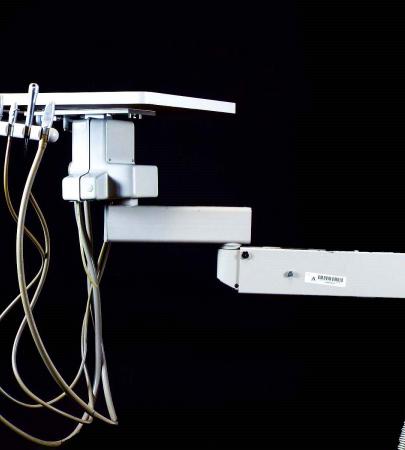

The A-dec 3175 Dental Delivery System is an assistant’s wall mount equipped with autoclavable syringe, autoclavable saliva ejector, and autoclavable HVE (or two HVEs optional). It also has a post box that contains a solids collector, a water quick disconnect (QD), and a power supply duplex.
Features:
- Autoclavable Dental Handpieces
- Quick Disconnect Couplings
- High Intrument Load Capacity
- Fine Solids Collector
- Versitile Dental Delivery System
- Flexible Instrument Arm
- All the handpieces are automatic with the foot control
- Uses a number of 3 autoclavable dental handpieces
- Has quick disconnection couplings
- Has high weight load capicity
Benefits:
- Easy to use
- Ergonomic design
- Made with highly durable materials for longer life
Technical Specifications:
-
Voltage: 100/110-120/220-240 VAC
-
Frequency: 50-60 Hz
-
Tray Holder Vertical Load: 5 lb (2.27 kg)
-
Vertical Load: 40 lb (18.14 kg)
-
Maximum Unit Weight: 100 lb (45.36 kg)
-
Minimum Air: 2.50 cfm (70.80 l/min) at 80 psi (551 kPa)
-
Minimum Vacuum: 12 cfm (339.84 l/min) at 8 inches of mercury (27 kPa)
-
Minimum Water: 1.50 gpm (5.68 l/min) at 40 psi (276 kPa)
-
Storage/Transportation Temperature: -40°C to 70°C (-40°F to 158°F) - Relative humidity: 80% for up to 31°C, decreasing linearly to 50% at 40°C.
-
Indoor Use: Altitude up to 2,000M (6,563 ft.), installation category II, pollution degree 2. (UL 61010A-1 and CAN/CSA C22.2, No. 1010.1-92 only)
-
Operating Temperature: 10°C to 40°C (40°F to 104°F) - Relative humidity: 80% for up to 31°C, decreasing linearly to 50% at 40°C.
