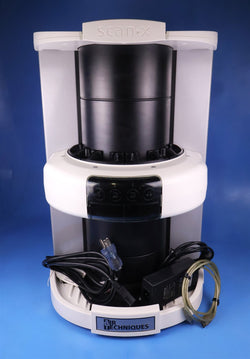

Used Dental X-Ray Phosphor Plate Scanner | ScanX Duo

Current Listings

ScanX Duo is complete digital X-ray solution that works with ALL image sizes: 0, 1, 2, 3 and 4; Panoramic; Cephalometric; and TMJ. ScanX utilizes photo stimulable phosphor (PSP) technology.

  • White body and a polished silver trim.
  • Wafer-thin, flexible and wireless PSP imaging plates.
  • Faster than film.
  • Compact footprint.
  • 2 processing slots that can be used simultaneously.
  • Achieve the highest image quality.
  • Provide ample comfort for every patient.
  • Faster image development.
  • Greater convenience.
  • No costly chemicals or processor maintenance.
  • There is no need for special training, as workflow and placement technique are identical to film.
  • To avoid risk of electric shock, fire, short-circuit or dangerous emissions, never insert any metallic object into the equipment.
  • Check the device cables for possible damage before switching on damaged cables, plugs and sockets must be replaced before use.
  • Never touch open supply outlets and patients simultaneously.
  • Do not locate unit where it could be sprayed with water, or in a damp environment.
Technical Specifications:
  • Dimensions (Inch): 10.38 D x 10 Wx 12 H
  • Weight: 21.5 lbs
  • Supply Voltage: 100 to 240VAC +/- 10%
  • Frequency: 50/60 Hz
  • Supply Current: 2 A Maximum
  • Operating Temperature: 50°F to 105°F (10°C to 40°C)
  • Operating Humidity: 5% to 95% RH
  • Resolution: Up to 18 lp/mm
  • Storage Temperature: -21°F to 130°F (-29°C to 54°C)
  • Storage Humidity: 5% - 95% (Non-condensing)
  • USB Port: Must be USB 1.1 or 2.0 or later
  • Monitor: SVGA 24", 1280x1024 or higher resolution
  • RAM: 2 GB
  • CPU: 3 GHz Intel CORE2
  • Hard Drive: 120 GB recommended
  • Video Display Adapter: 32 MB RAM
